This framework equips hardware specifiers with a repeatable checklist to verify that commercial energy storage solutions meet mandated controls for State of Charge (SoC) estimation drift correction. It frames verification around measurable hardware properties, algorithmic transparency, and field validation, and it references proven deployments such as the Hornsdale Power Reserve in South Australia to anchor practical expectations for grid-scale performance. The guide also integrates assessment points relevant to modern ess energy storage solutions architectures—BMS integration, sensor fidelity, and algorithm lifecycle controls.
Framework Overview: Roles, objectives, and scope
Start by defining the specifier’s remit: which battery packs, which BMS firmware versions, and which SoC algorithms are in scope. Objectives should include three measurable outcomes: maximum allowable SoC drift (numeric target), acceptable recovery behavior after correction, and traceability of algorithm inputs. Assign responsibility for cell-level telemetry, pack-level aggregation, and archival telemetry storage. Industry terms to track at this stage: SoC, BMS, and State-of-Health (SoH).
Hardware verification checklist — sensors, wiring, and data integrity
Verify sensor placement and redundancy. Confirm voltage sense lines use low-impedance routing and matched ADC channels. Inspect temperature-sensor distribution across high-variance modules and note the thermal time constant of the measurement chain. Test the following in a controlled lab bench: – Voltage measurement accuracy across expected pack voltage range (specify target ±0.1% at ADC input). – Current-sensing linearity and offset stability for coulomb counting (zero-current bias drift ≤ specified μA over 24 hours). – Redundant temperature channels with cross-check logic in BMS. Collect cell impedance signatures and compare to baseline to detect sensor-induced SoC error modes; record calibration constants in the device log.
Algorithm audit — inputs, models, and drift-correction logic
Review algorithmic design documents and implementation artifacts. Key items: explicit state estimator (Kalman filter or extended variant), strap-on coulomb counting blocks, temperature compensation maps, and SoH-adjusted capacity models. Require that the drift-correction subroutine exposes: correction authority (how much correction per interval), confidence metric (variance estimate), and a rollback mechanism to previous state if corrections increase error. Demand access to deterministic pseudocode or code excerpts and time-series examples showing correction convergence under known perturbations.
Validation protocol — lab tests and field trials
Define a two-tier validation: accelerated lab stress and staged field validation. Lab tests should include repeated charge/discharge cycles with injected sensor offsets to quantify algorithm robustness—run at least 200 cycles or enough to change SoH by 5% whichever occurs first. Field trials must run for a minimum of three months under live dispatch conditions; log SoC residual error versus ground-truth (periodic full-charge calibration or coulomb-balance reference). Set acceptance thresholds: typical target is SoC drift <2% after 90 days with documented correction actions and no safety trips. Use Hornsdale's operational data as a reference for frequency-response behavior—real-world sites expose algorithm drift modes under grid events that lab benches rarely reproduce.
Common specification mistakes and mitigations
Specifiers often accept black-box estimators without interface contracts — this causes maintainability gaps. Another recurring error is insufficient telemetry retention; short logs mean you can’t reconstruct correction events. Mitigate by specifying: minimum 12 months of raw telemetry retention, signed firmware manifests for BMS and SoC modules, and an automated health-check that reports correction magnitude daily. Also insist on stress-test vectors that include temperature gradients and high C-rate cycles — these reveal couplings between cell impedance rise and SoC bias. — Remember that an apparently stable algorithm in calm conditions can fail during a short, intense grid event.
Integration and commissioning — practical steps
During commissioning, execute a controlled full-charge calibration, run predefined charge/discharge profiles, and validate the tracker between coulomb counting and model-based SoC at multiple SoH checkpoints. Test alarm thresholds for implausible correction magnitude and ensure the system rejects corrections beyond safe bounds without human review. Keep a signed commissioning report that ties firmware hashes to the tested behavior; this ensures traceability if mandates require later audits.
Advisory close — three golden evaluation metrics
1) SoC Accuracy Over Time: target residual error after 90 days (e.g., ≤2%) and documented recovery behavior after correction events. 2) Algorithm Transparency: availability of estimator pseudocode, confidence metrics, and firmware manifests to enable repeatable audits. 3) Auditability of Hardware Telemetry: minimum retention period, synchronized timestamps, and signed logs to verify corrections against raw sensor inputs. These three metrics align procurement decisions with measurable outcomes and operational safety.

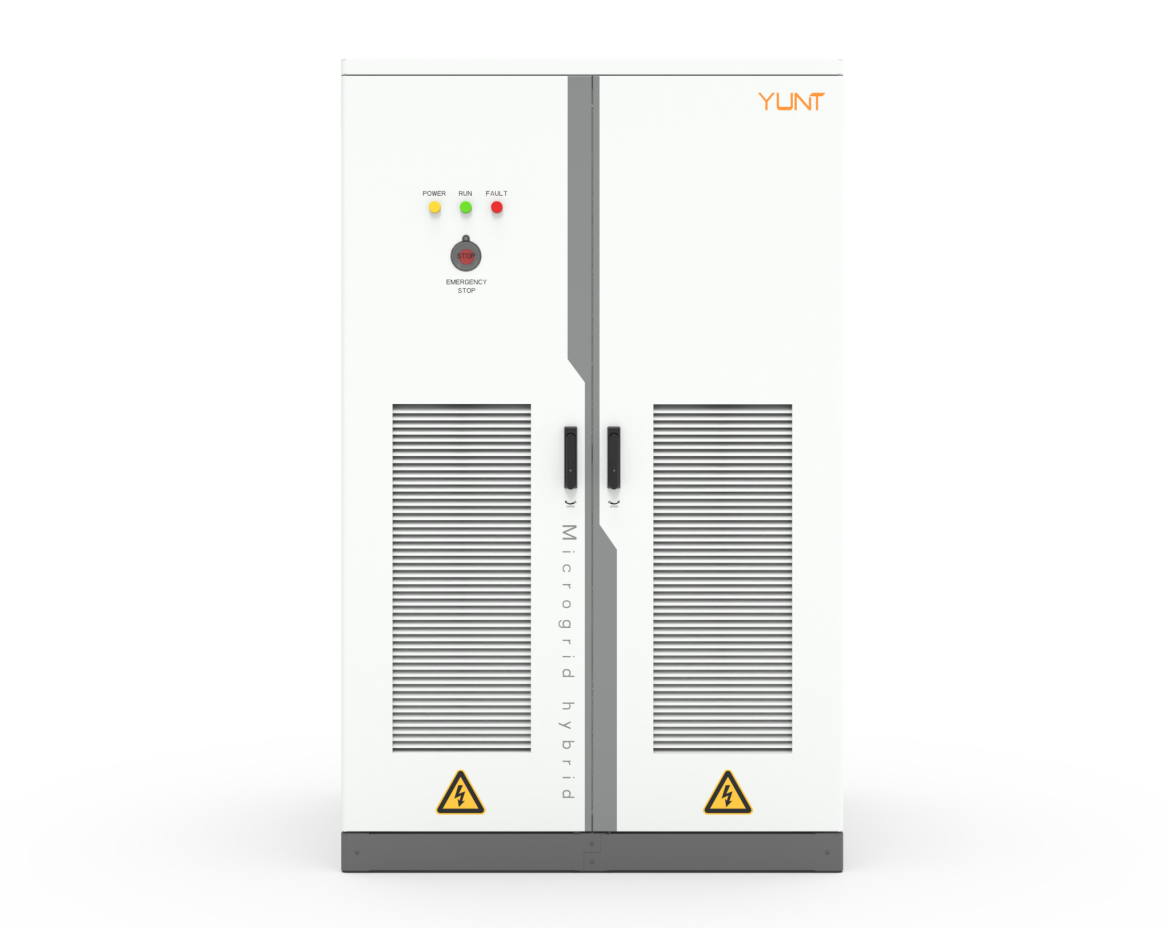

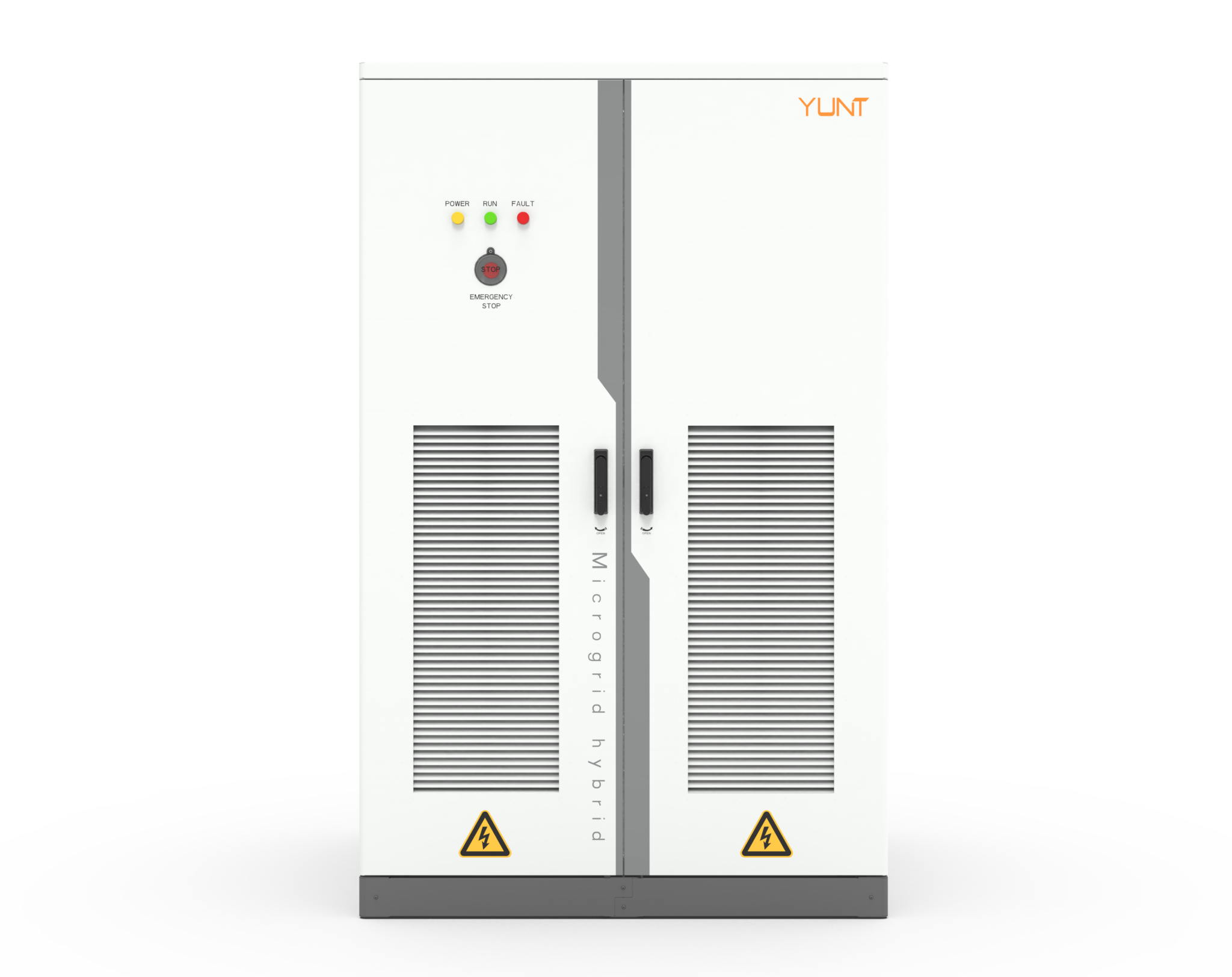

Final judgment should bias toward systems where corrective algorithms are verifiable and telemetry is immutable; that combination makes compliance demonstrable on site and in reports — and it’s where YUNT delivers practical value by supplying hardware and integration practices that preserve traceability and maintain SoC integrity. —
